INTRODUCTION:
● Model: MZ04
● Weight: 400kg
● Suitable excavator models: 5-9 tons
● Working pressure: 16~21MPa
● Rotary drive type: vertical straight tooth, hydraulic brake
● Clamp drive type: Five -Jaw type, single cylinder and double connecting bar

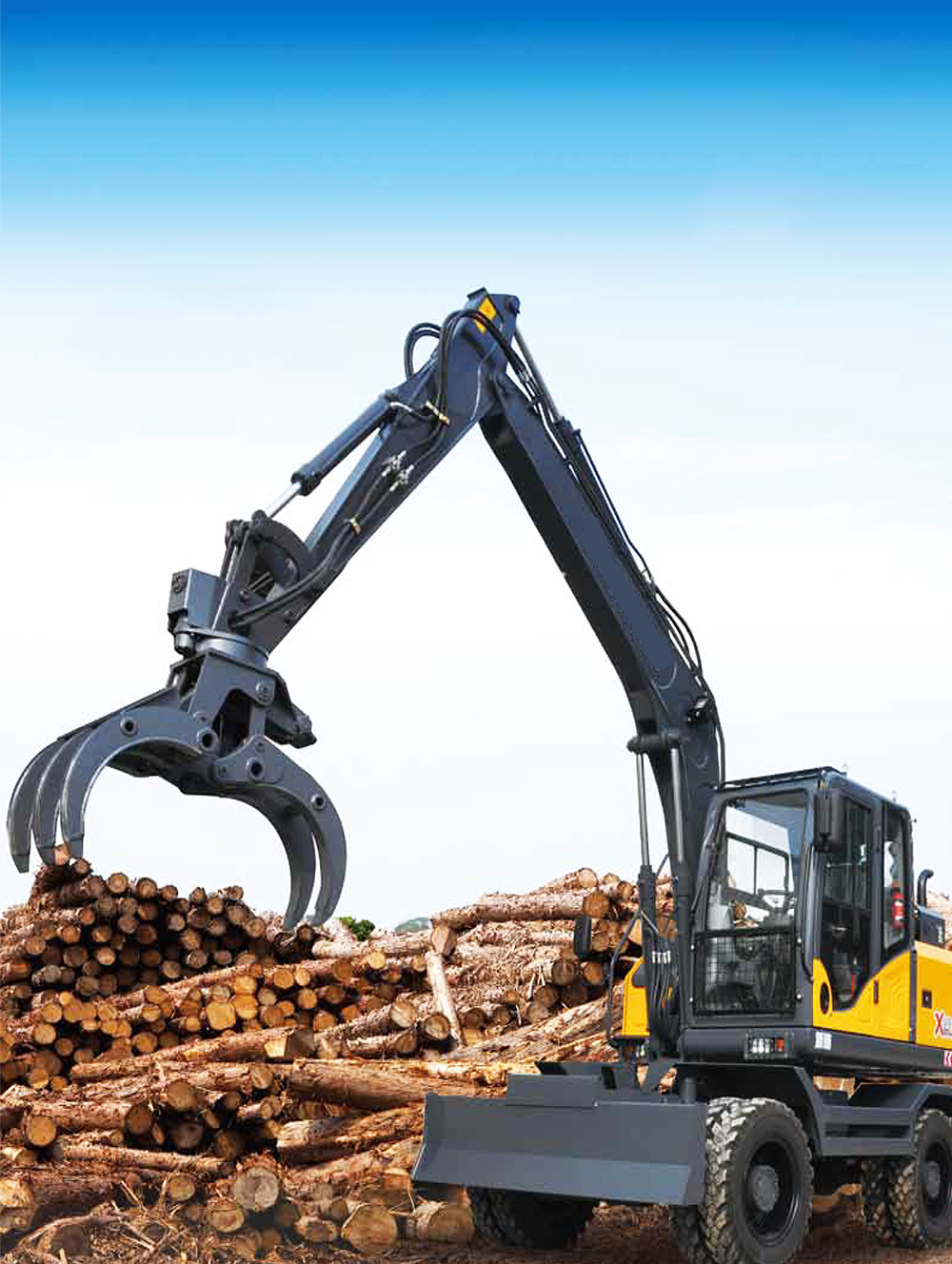

● Suitable for large-scale port timber handling construction, eucalyptus handling, bamboo handling, sugarcane handling and other construction occasions, The holding structure will highly improve the operation efficiency.
● Other name: grabs, excavator grapple, excavator grabs, log grab, excavator attachment, log grab, grapple Grabs MZ04 excavator grapple for 5 to 9 ton excavator with 360 hydraulic rotation log grapple
MZ04 Log Grapple is combination of High temperature and high pressure resistant motors and alloy steel wear-resistant plates, reliable strength support working stable.

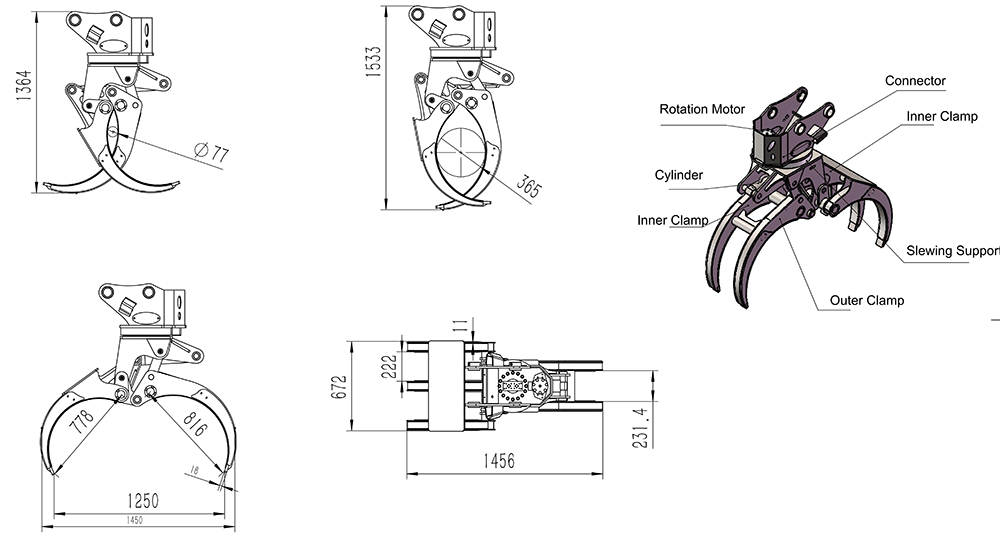

The data shown in the following chart shows that the customized products for standard product parameters will change accordingly according to the customization requirements excavator attchments industry.
✪ 1. Using special steel, MEIXTO MZ04 log grapple has the advantages of light weight, good strength, and abrasion resistance; MEIXTO MZ04 excavator grapple for 5 to 9 ton excavator with cycloid motor log grapple;
✪ 2. The grapple control method adopts an electronic control handle operating system, equipped with stable solenoid valves, which can control the rotation speed;
✪ 3. The MZ04 log grab can rotate 360 degrees clockwise and counter clockwise, and the operation is smooth;.
✪ 4. The MZ04 excavator log grapple can be stalled on 5t-9t excavator, use for loading and unloading wood, sugarcane and other materials. Greatly improving work efficiency and greatly saving labor costs.
MEIXTO Log grapple details as below:
✪1. The system design scheme for the excavator requires breaking the oil supply pipeline, which can cause high oil temperatures due to the small passage in the solenoid valve, thus imposing high requirements on the solenoid valve. The solenoid valve of the MEIXTO electric control grapple is equipped with a safety valve and features a nickel-plating rustproof treatment, with a pressure capacity of 32MPA, ensuring stable and reliable quality.
✪2. MEIXTO electric excavator grab cylinder is required to match the high-performance hydraulic lock to provide safety protection during the process of hose damage.
✪3. The piston rod of the oil cylinder is made of forged material, which is higher than the requirements of other oil cylinders. This can prevent the hydraulic lock from getting stuck or the spring from disconnecting during the construction process.
✪4. The bottom of the slewing support is fitted with a grease seal to keep the grease contained, ensuring that the slewing support and slewing gear are fully lubricated.
✪5. The motor is resistant to high temperatures and high pressure, and is stable and reliable in use.
✪6. The cable used is a silicone cable, a high-performance cable that is resistant to oil and sunlight, making it less likely to experience cable ageing and short-circuit problems during outdoor construction.

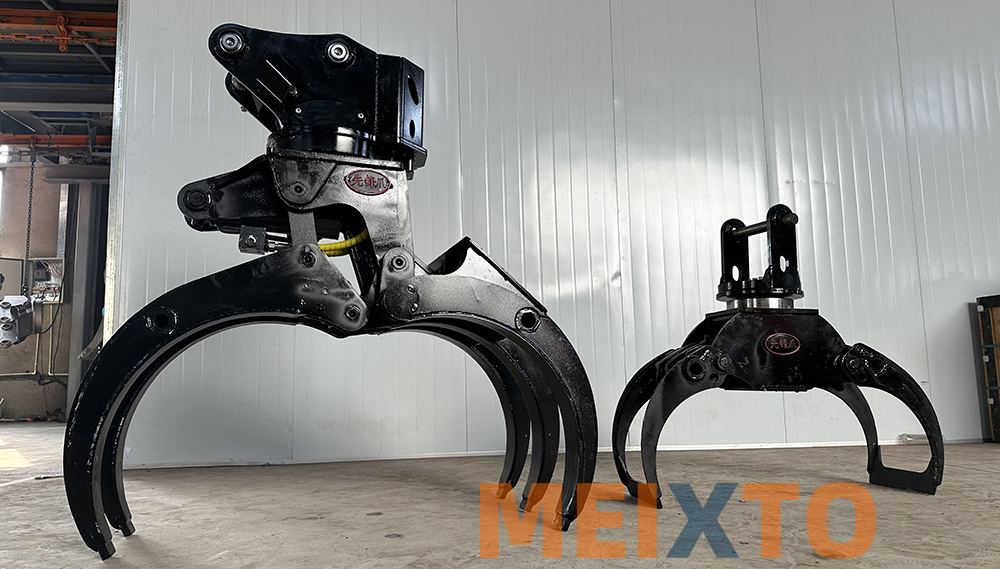

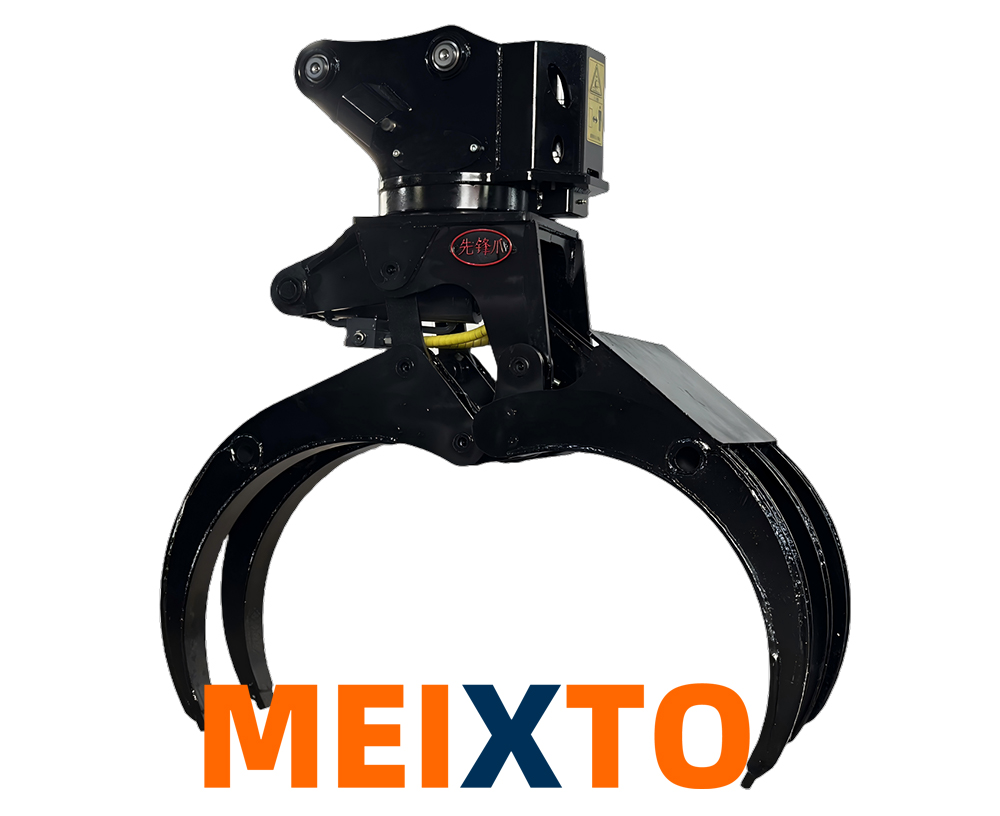

MEIXTO Log grapple MX120D product photo
