INTRODUCTION:

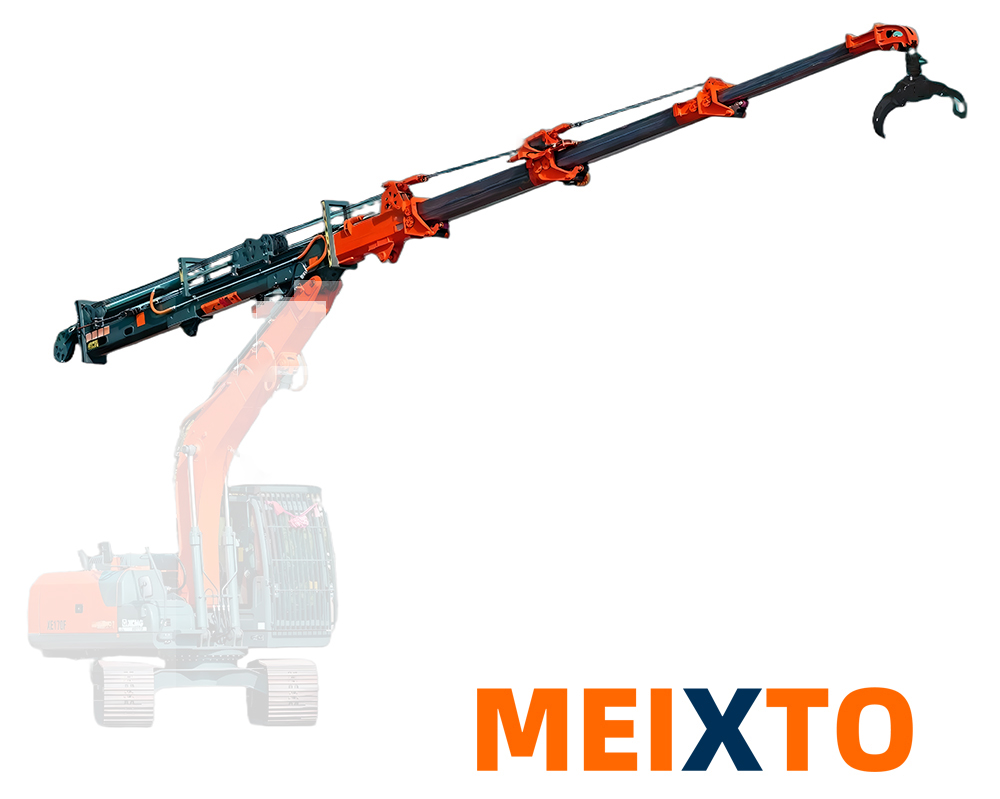

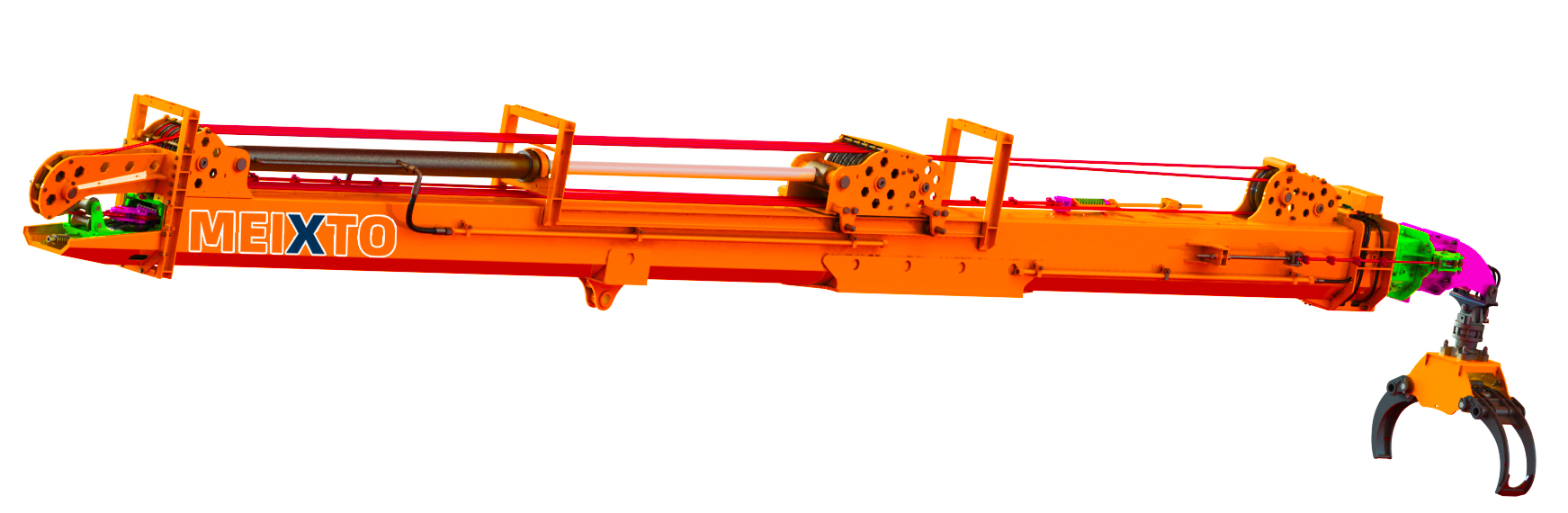

● Model: MX03 Excavator Forest Telescopic Arm
● Weight: 1985kg（log grapple not included)wood crane
● Suitable excavator models: 12-35 tons log crane
● Telescopic cylinder: pressure follows the main engine, one-way time is 3S when the flow rate is 116L/min;

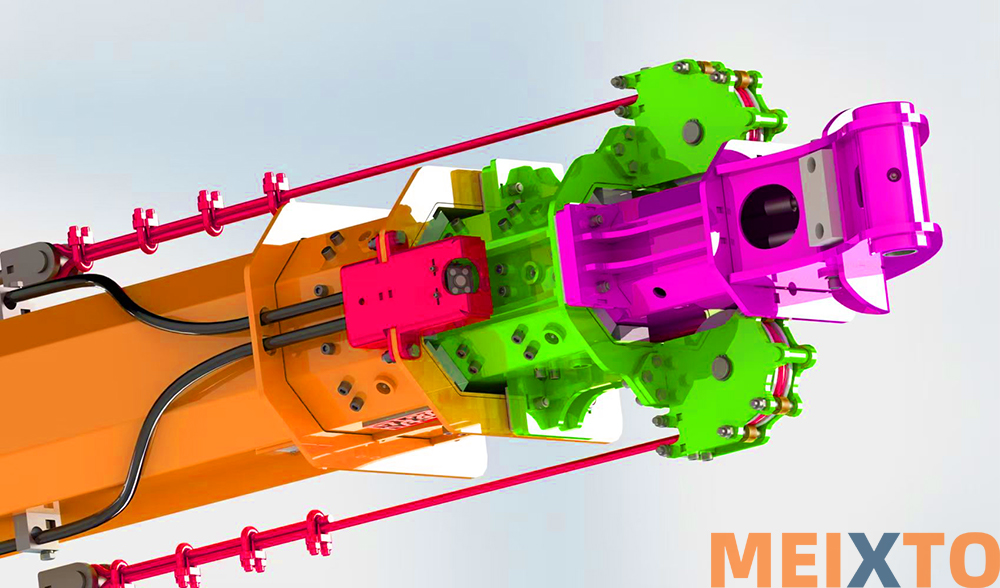

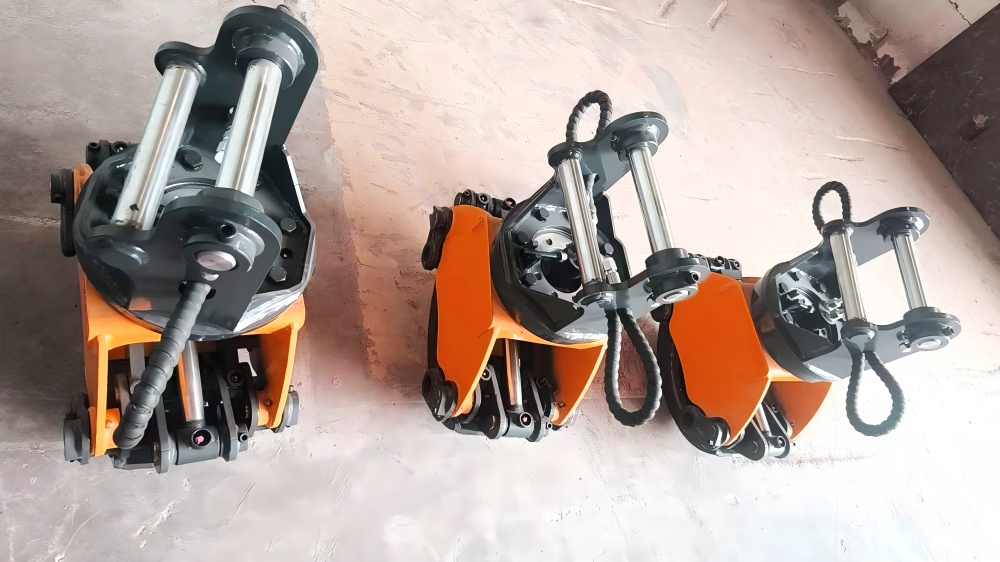

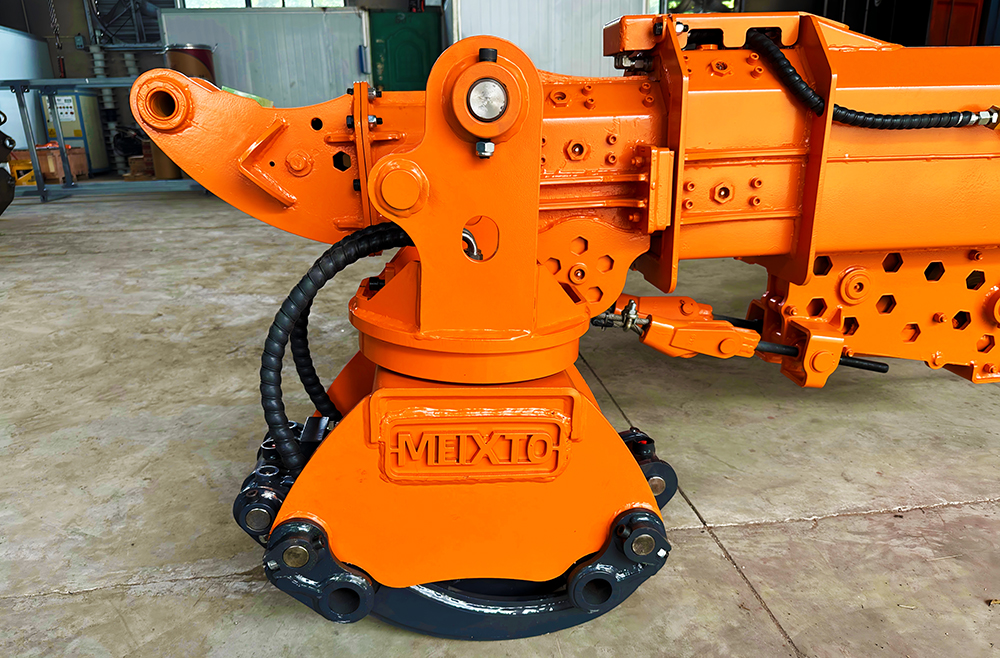

● Wood clamp freedom: passive 360-degree unlimited rotation + clamping action crane wood;

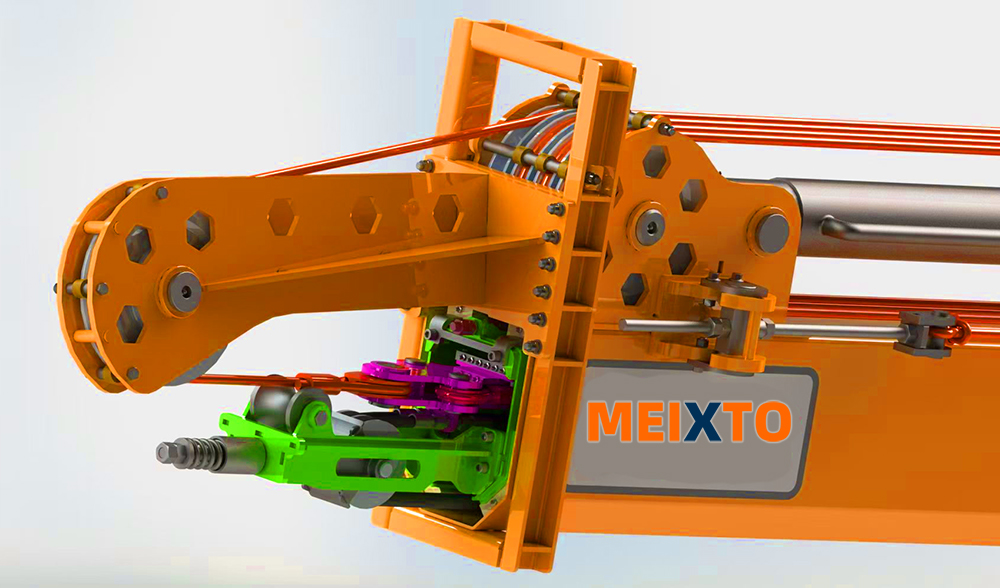

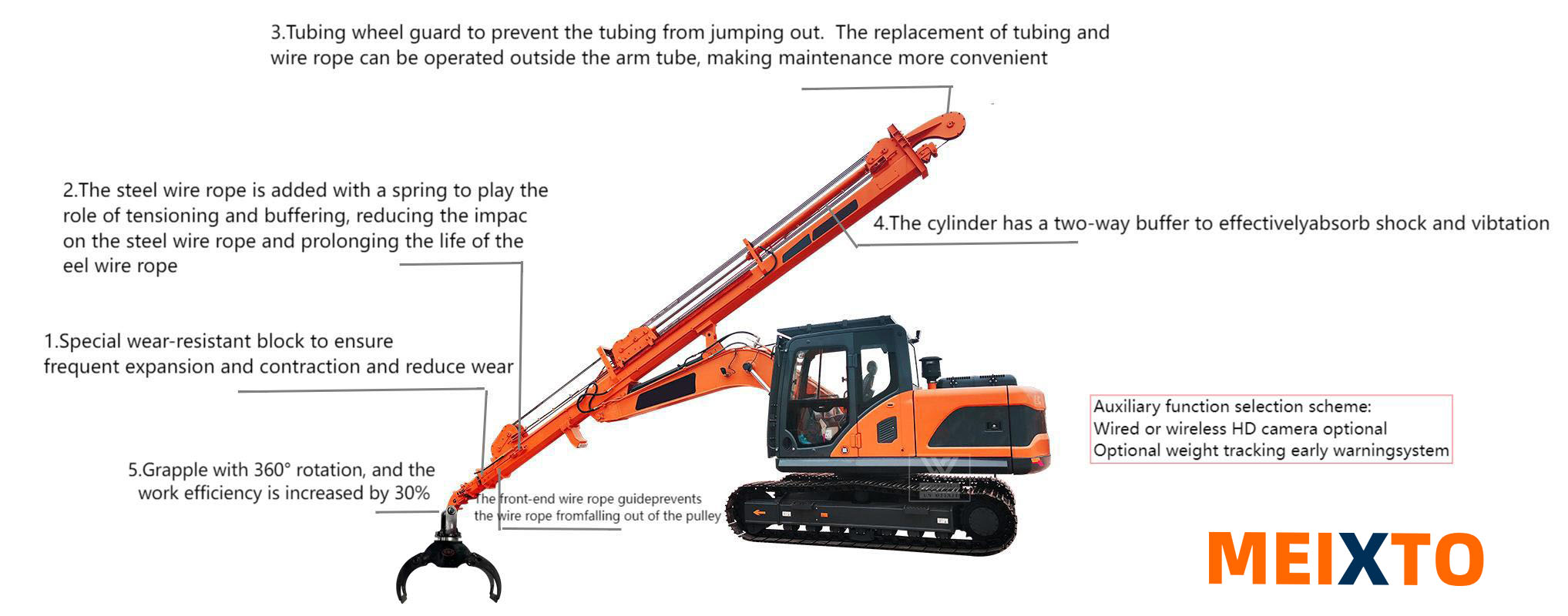

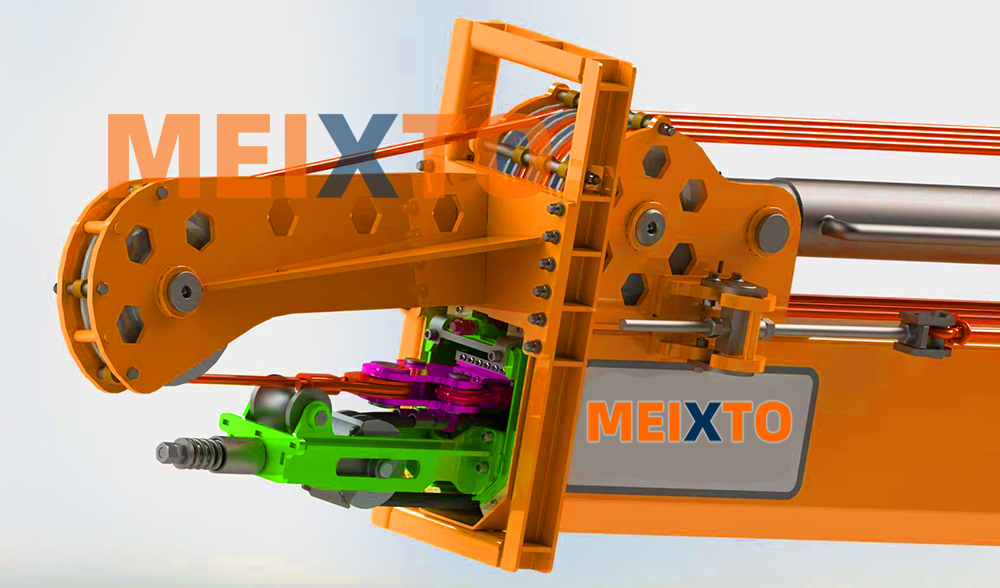

● Features:Spring steel wire rope tensioner,Convenient oil pipe and wire rope replacement design, Side wire rope anti-fall slot device,Main oil cylinder anti-bending design forestry crane.
● Other name:Excavator telescopic arm, forestry telescopic boom, forestry log crane, forest equipment, Forest crane, Forestry telescoping arm, Forest excavator telescoping boom timber crane,log lift crane,crane logs,forestry telescoping boom,wood telescoping boom,timber telescopic arm, forestry cane for excavator, excavator log crane.

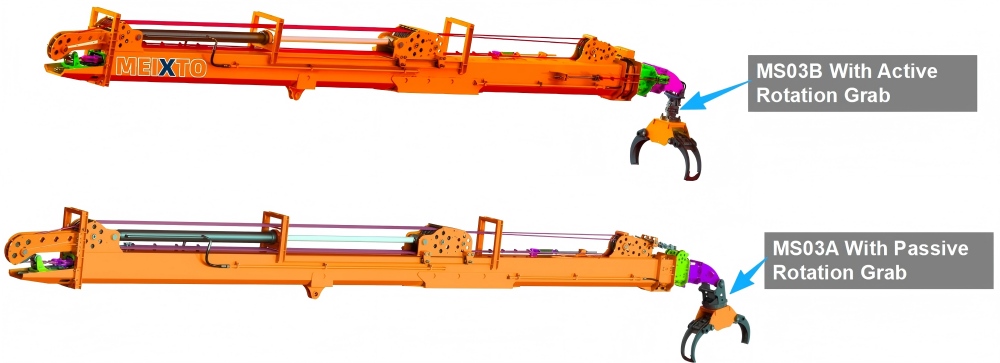

MS03 Forestry telescoping boom the cylinder has a two-way buffer to effectively absorb shock and vibration. the grapple with 360° rotation, which increased the working efficiency by 30% timber crane for sale

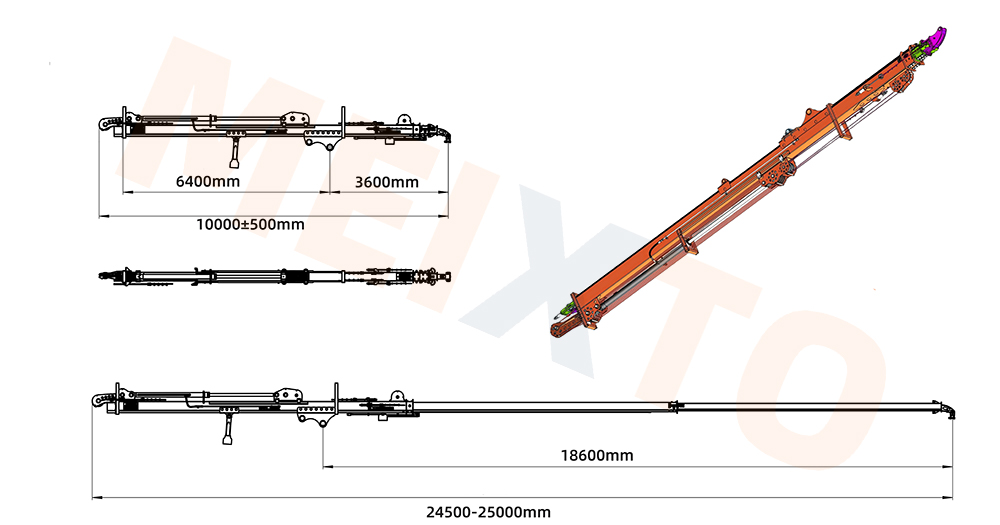

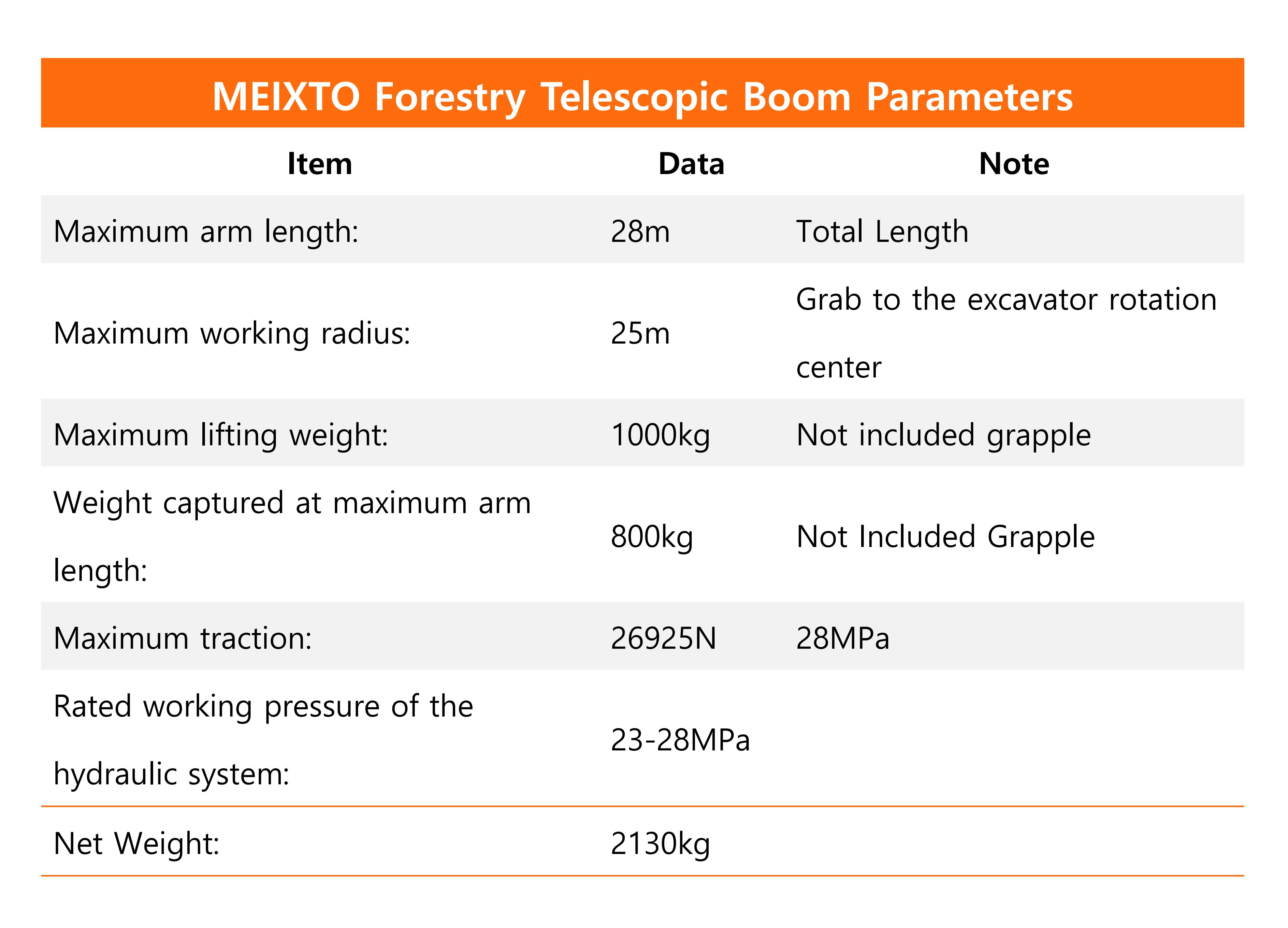

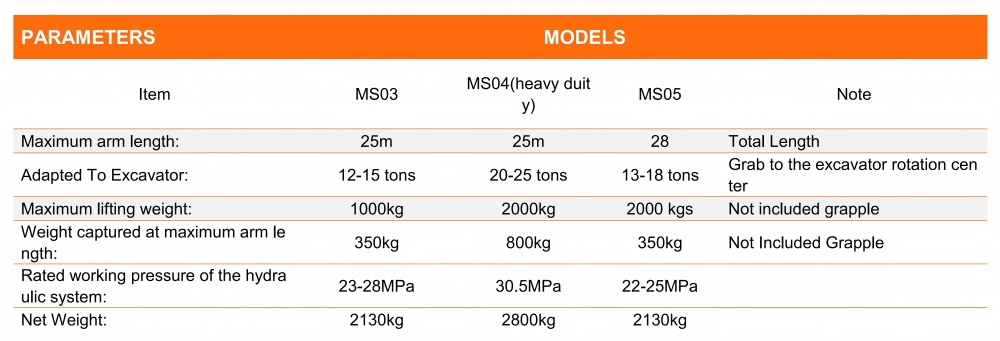

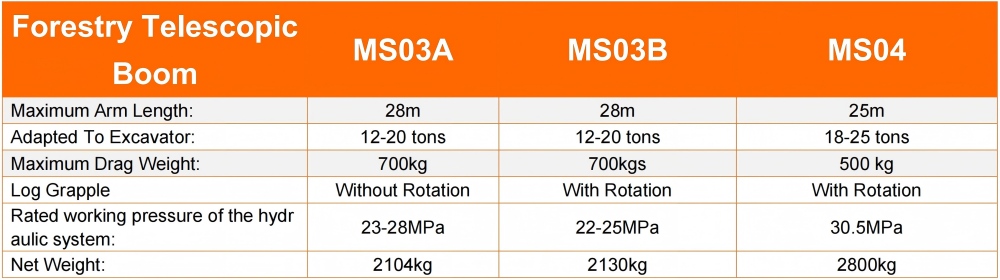

The data shown in the following chart shows that the customized products for standard product parameters will change accordingly according to the customization requirements excavator attchments industry.

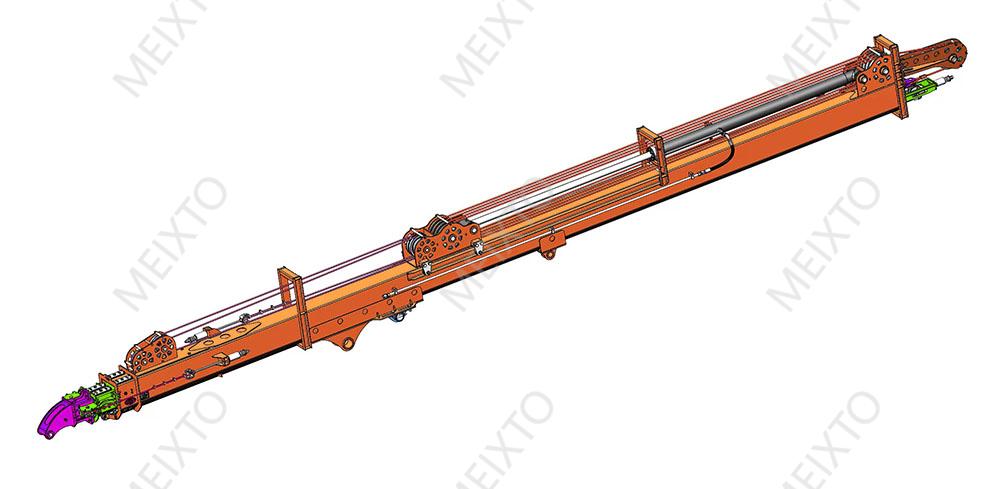

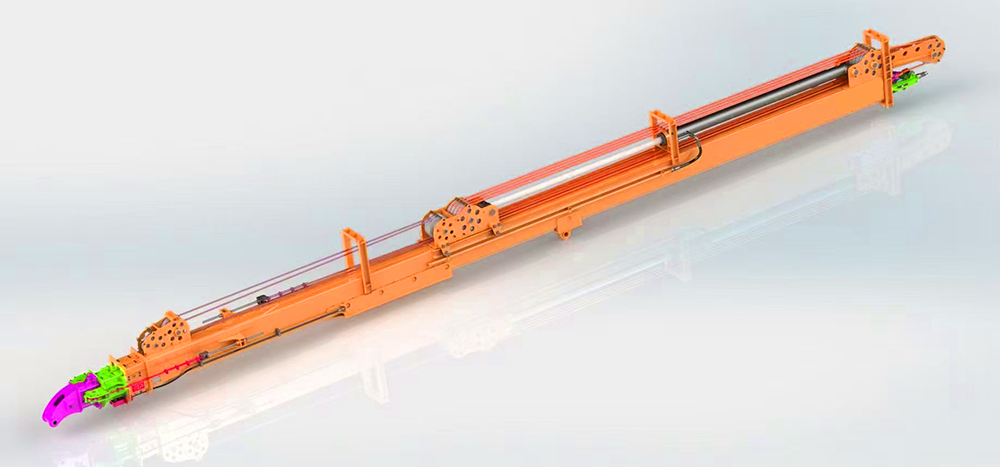

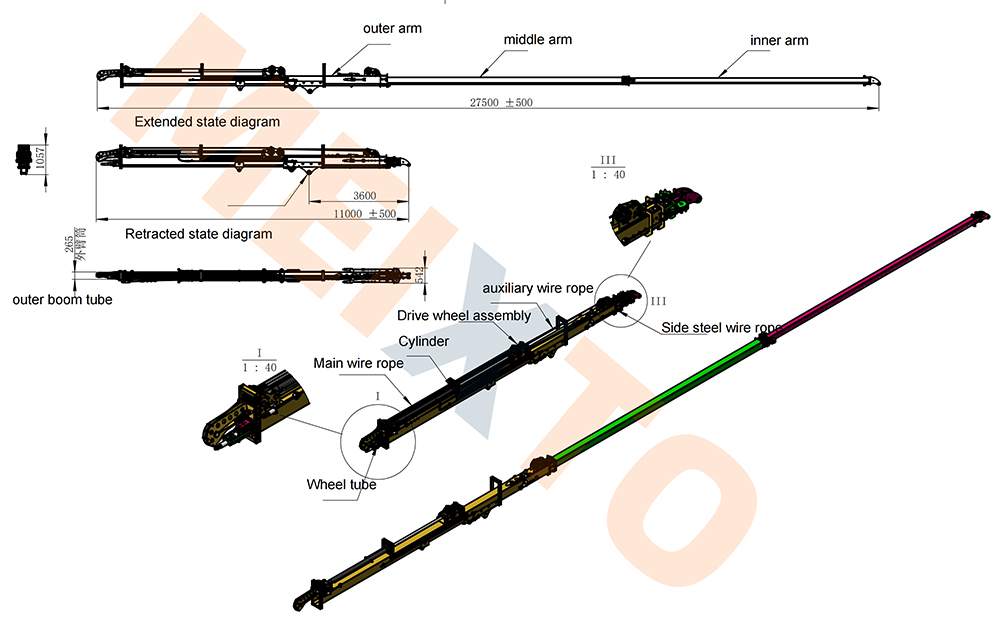

✪ 1.An internal telescopic boom consists of a movable body nested within a fixed body. The movable body is extended and retracted by telescopic cylinders, achieving free extension and retraction;
✪ 2. Its structure consists of a single fixed body and one or more movable bodies. One section is the fixed body, and the remaining sections are the movable bodies. The movable bodies are nested within the fixed body in order of size, with two sections nested within one, and three sections nested within two. The telescopic cylinders enable sequential extension and retraction. Internal telescopic booms are complex and expensive to manufacture, typically designed with two or more sections. They are used for grabbing and lifting soil in deep pits. Their advantages include increased operating radius and excavation depth；
✪ 3. They offer a wide effective operating range and high working height. The telescopic boom structure allows for reaching greater distances, while the boom's variable amplitude allows for higher working heights, which are unmatched by traditional excavators;
✪ 4. They can directly load and unload cargo over some obstacles. The telescopic arm device can cross small ditches, steps, door and window holes for loading and unloading operations; due to the negative amplitude angle, it can also be used to clear ditches, repair and level ditches on the parking surface, making it more suitable for use in field conditions.
