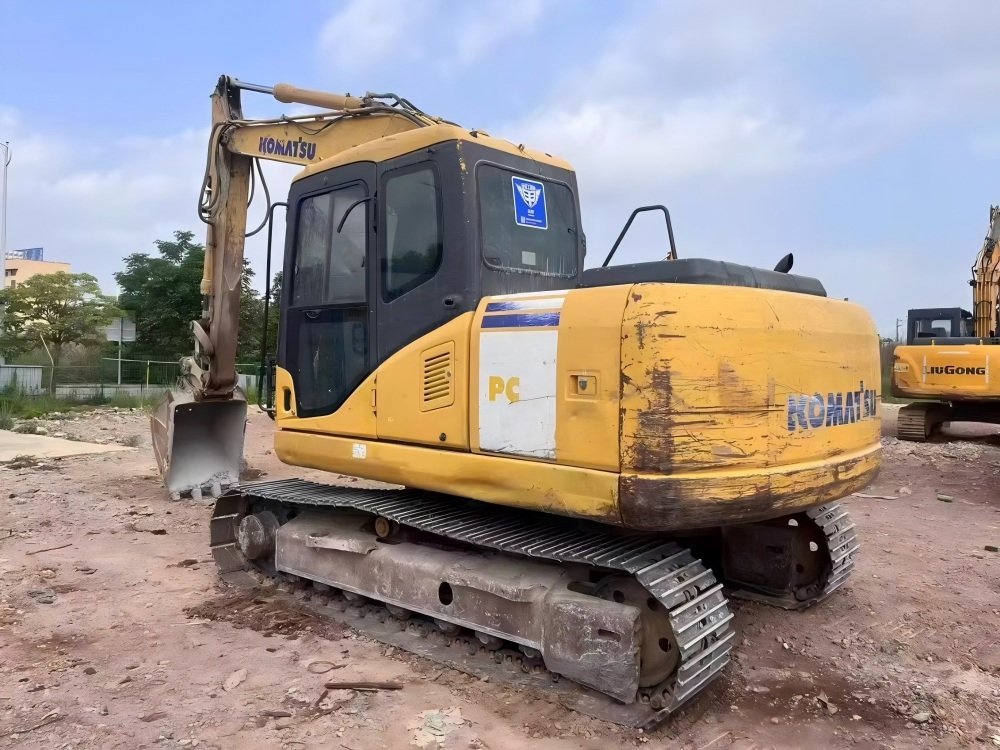

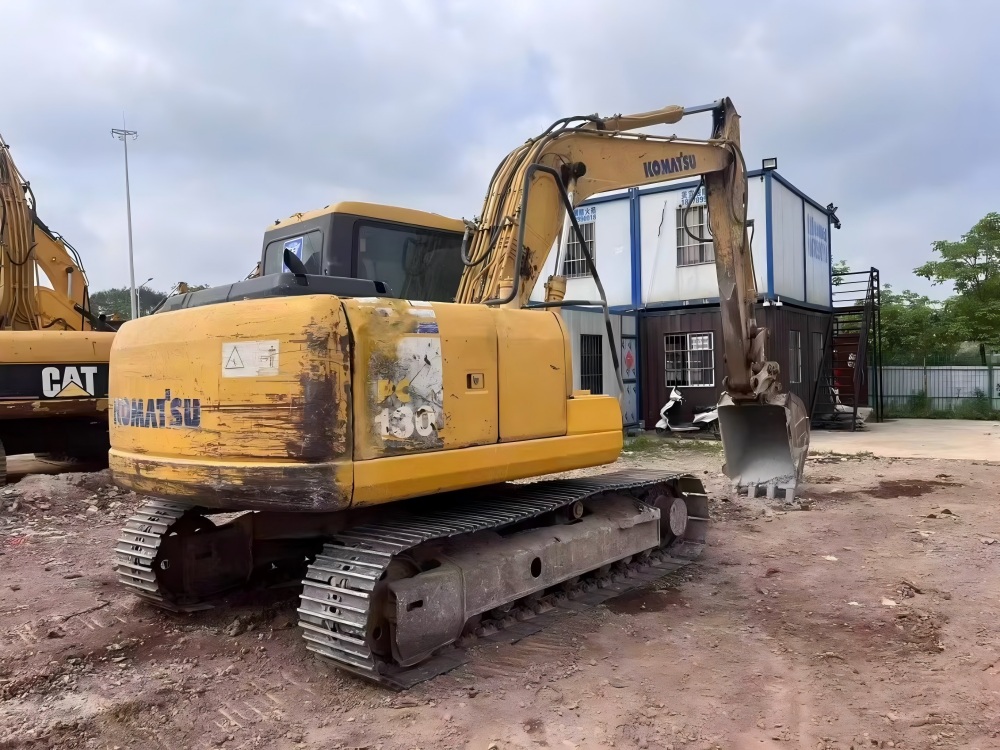

Used Komatsu PC130-7 Hydraulic Excavator For Sale

📧 Leave us a message

---

Original Factory Parameters Of The Used Komatsu PC130-7:

Machine operating weight (kg): 12600
Bucket capacity (m³): 0.53
Hoist length (mm): 2100
Origin: Jining, Shandong
Tonnage (tons): 13
Type of machine: Bucket Backhoe
Manufacturer: Joint Venture/Imported
Power: Conventional Power

Power System:

Engine Model: Cat C2.6 DI Turbo
Rated Power (kw/rpm): 41.5
Bore × Stroke (mm): 87 × 110
Displacement (L): 2.6

Performance:

Swing speed (rpm): 11
Travel speed (km/h): 2.7-5.5
Grading ability (%): 70/30°
Ground pressure (kPa): 38
Bucket digging force (kN): 93.2
Hoist digging force (kN): 61.8

Power system:

Engine model: Komatsu SAA4D95LE-3
Rated Power (kw/rpm): 66/2200
Displacement (L): 3.26
Cooling Method: Water-cooled
Operating Type: Direct injection, turbocharged, intercooled diesel engine

Hydraulic System:

Main Pump Maximum Flow (l/min): 226
Working Hydraulic Circuit (MPa): 32
Travel Hydraulic Circuit (MPa): 35
Slewing Hydraulic Circuit (MPa): 29
Control Hydraulic Circuit (MPa): 30
Hydraulic Breaker Pipeline: Not available

Oil Capacity:

Fuel Tank (L): 247
Hydraulic Oil Tank (L): 90 Engine Oil
Change Quantity (L): 11 Coolant (L) 13.4

Dimensions:

Total Transport Length (mm) 7599
Total Transport Height (mm) 2175
Cabin Height (mm) 2175
Counterweight Ground Clearance (mm) 855
Track Ground Contact Length (mm) 2880
Total Track Length (mm) 3610
Track Shoe Width (mm) 500
Track Gauge (mm) 1990
Minimum Ground Clearance (mm) 400
Rear Turning Radius (mm) 2110

Working Range:

Maximum Digging Radius (mm) 8290
Maximum Digging Radius at Stopping Surface (mm) 8170
Maximum Digging Depth (mm) 5520
Maximum Digging Height (mm) 8610
Maximum Unloading Height (mm) 6170
Maximum Vertical Digging Depth (mm) 4940
Maximum Effective Digging Depth (mm) 5315
