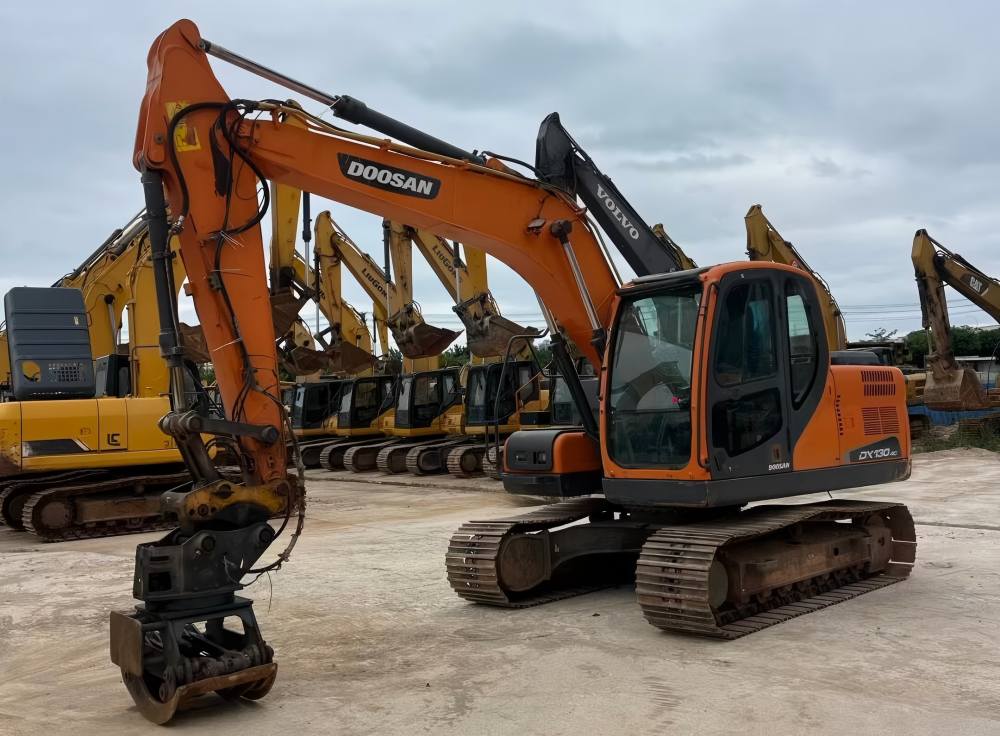

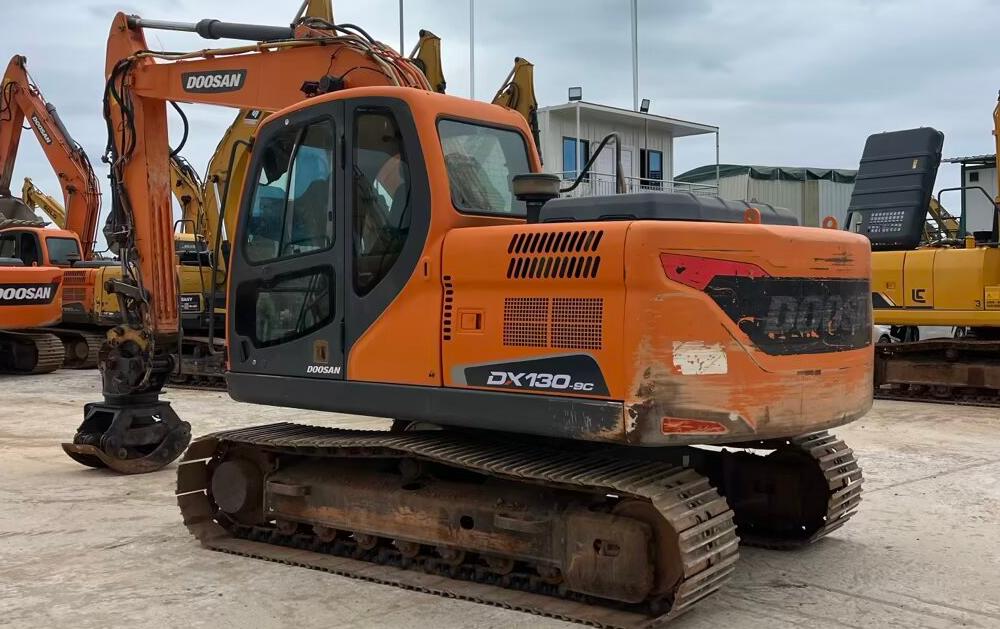

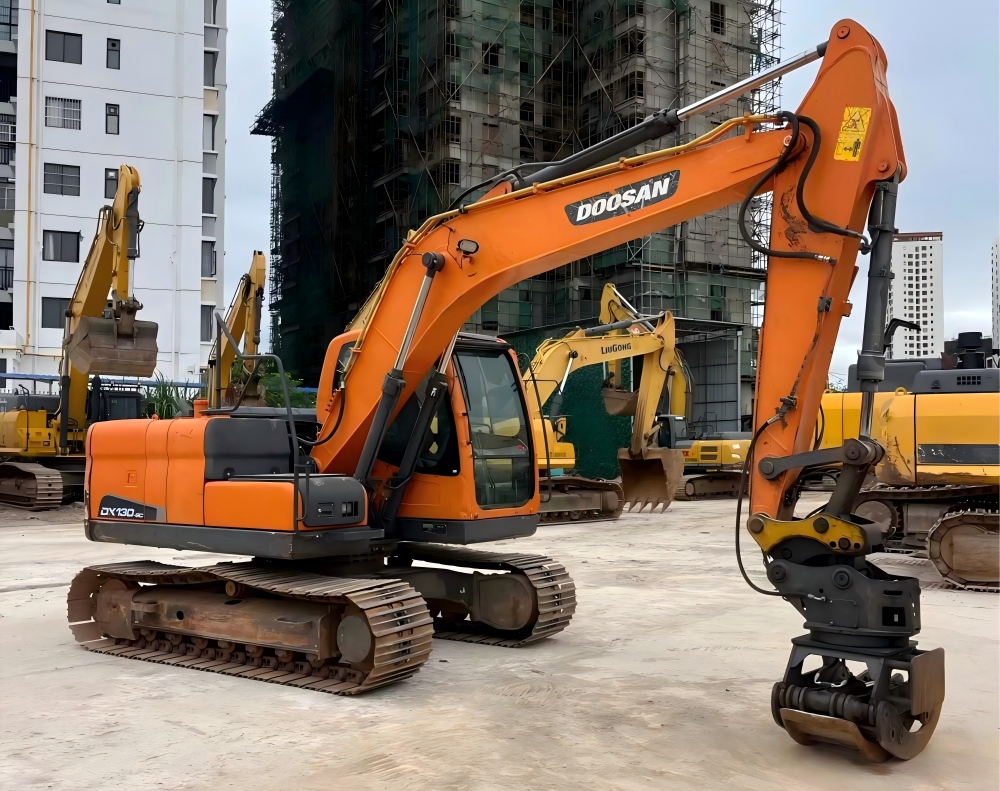

Used Hydraulic Excavator For Sale Doosan DX130

📧 Leave us a message

---

Original Factory Parameters Of The Used excavator Doosan DX130:

Powertrain: Traditional Power
Manufacturer: Joint Venture/Imported
Bucket: Backhoe
Tonnage: 13 tons
Operating Weight: 13110 kg
Bucket Capacity: 0.53 m³
Boom Length: 4600 mm
Stick Length: 2260 mm

Performance:

Swing Speed: 11.5 rpm
Travel Speed: 4.7 km/h 2.8
Ground pressure (kPa): 35.3
Bucket digging force (kN): 97/103
Stick digging force (kN): 62/65.7

Power System:

Engine Model: D34
Rated Power (kw/rpm): 71/1850
Number of Cylinders: 4
Bore × Stroke (mm): 98*113

Hydraulic System:

Main Pump Type: Variable displacement piston pump
Maximum Main Pump Flow Rate (l/min): 2*114
Boom Cylinders - Number × Bore × Stroke (mm): 2 - 95*70*1085
Stick Cylinders - Number × Bore × Stroke (mm): 1 -110*75*1068
Bucket Cylinders - Number × Bore × Stroke (mm) 1-95*65*900

Fuel Capacity:

Fuel Tank (L) 260
Hydraulic Oil Tank (L) 152
Engine Oil Change Capacity (L) 12

Main dimensions:

Overall Transport Length (mm) 7605
Overall Transport Width (mm) 2590
Overall Transport Height (mm) 2745
Overall Cab Height (mm) 2775
Overall Track Length (mm) 3495
Track Shoe Width (mm) 600
Counterweight Ground Clearance (mm) 895
Minimum Ground Clearance (mm) 410
Rear Turning Radius (mm) 2130
Number of Track Rollers (Single Side) 1
Number of Track Shoes (Single Side) 43
Number of Track Rollers (Single Side) 7

Operating range:

Maximum Digging Radius (mm) 7955
Maximum Digging Radius at Stopping Face (mm) 7805
Maximum Digging Depth (mm) 5380
Maximum Digging Height (mm) 7955
Maximum Unloading Height (mm) 6015
