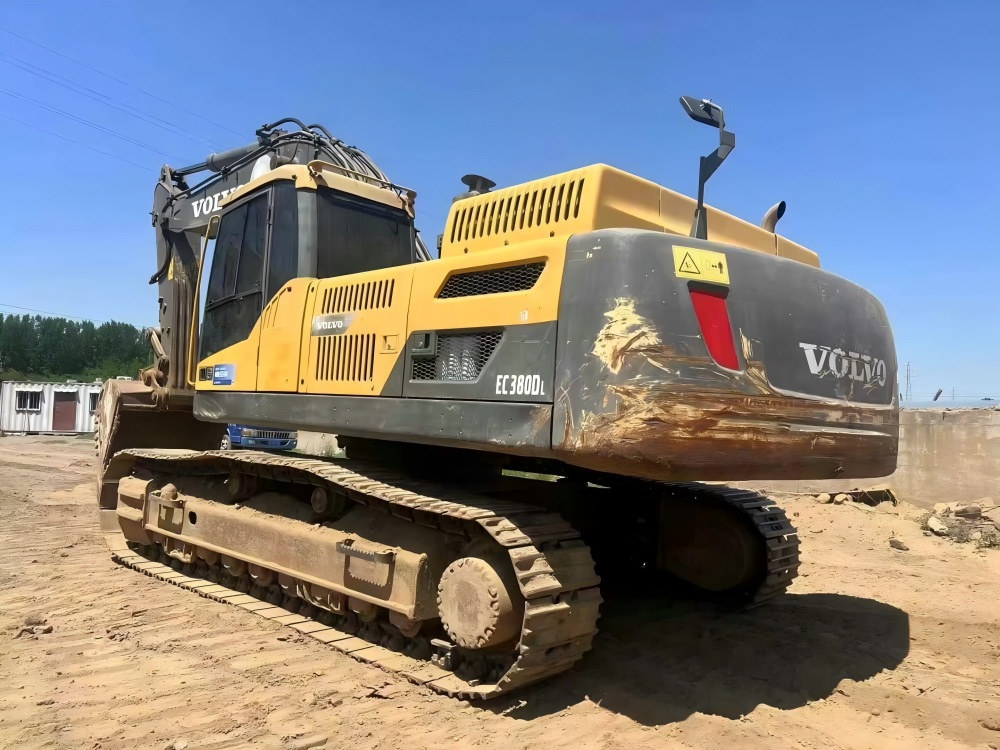

Used Excavator Volvo 380DL For Sale

📧 Leave us a message

---

Original Factory Parameters Of The Used Volvo EC380DL:

Powertrain: Conventional Power
Manufacturer: Joint Venture/Imported
Bucket: Backhoe
Tonnage: 38 tons
Operating Weight: 37800-41100 kg
Bucket Capacity: 1.35-3 m³
Boom Length: 6450 mm
Stick Length: 2600 mm
Country of Origin: South Korea

Performance:

Swing Speed: 10.3 rpm
Travel Speed: 3.4/5.3 km/h
Gradient: 35°
Ground Pressure: 68.1 kPa (with 600mm track shoes)
Bucket Digging Force: 221.7 kN (Standard)/242.7 kN (Afterburner)
Stick Digging Force: 144.4 kN (Standard)/157.4 kN (Afterburner)

Power System:

Engine Model: Volvo D13H-D
Rated Power (kW/rpm): 215/1700
Displacement (L): 12.8
Number of Cylinders: 6 Bore × Stroke (mm): 131 × 158
Cooling Method: Water-cooled
Operating Mode: Air-to-air and air-cooled, meets US Tier 4i and EU IIIB emission standards

Hydraulic System:

Main Pump Type: Variable displacement axial piston pump × 2 + pilot gear pump
Travel Hydraulic Motor Type: Variable displacement axial piston motor (with mechanical brake)
Rotary Hydraulic Motor Type: Fixed displacement axial piston motor (with mechanical brake)
Main Pump Maximum Flow Rate (L/min): 300 × 2 + 25.5 Pilot Circuit (MPa): 3.9
Working Hydraulic Circuit (MPa): 32.4/35.3
Travel Hydraulic Circuit (MPa): 35.3
Rotary Hydraulic Circuit (MPa): 27.9
Boom Cylinder - Number × Bore × Stroke (mm) 2 - 160 × 1530
Stick Cylinder - Number × Bore × Stroke (mm) 1 - 175 × 1750
Bucket Cylinder - Number × Bore × Stroke (mm) 1 - 145 × 1285
Oil Capacity Fuel Tank (L) 620
Hydraulic Oil Tank (L) 227
Hydraulic System (L) 485
Engine Oil Change Quantity (L) 42 Coolant (L) 60

Main dimensions:

Total Transport Length (mm) 11330
Total Transport Width (mm) 3340
Total Transport Height (mm) 3590 (Boom Height)
Cabin Height (mm) 3197
Total Track Length (mm) 5180
Track Shoe Width (mm): Three-tooth 600/700/800/900; Double-tooth 600
Total Track Width (mm) 3340
Track Gauge (mm) 2740
Minimum Ground Clearance (mm) 500
Counterweight Ground Clearance (mm) 1210
Minimum Turning Radius of Front Working Device (mm) 4300
Rear Turning Radius (mm) 3560

Operating range:

Maximum Digging Radius (mm) 10550
Maximum Digging Radius of Stopping Face (mm) 11520
Maximum Digging Depth (mm) 6850
Maximum Digging Height (mm) 10170
Maximum Unloading Height (mm) 7 090
Maximum vertical digging depth (mm) 5350
Maximum effective digging depth (mm) 8000
Boom slewing angle (left/right °)
None Bulldozer blade width × height (mm)
None Bulldozer blade lifting or pushing depth (mm) None
