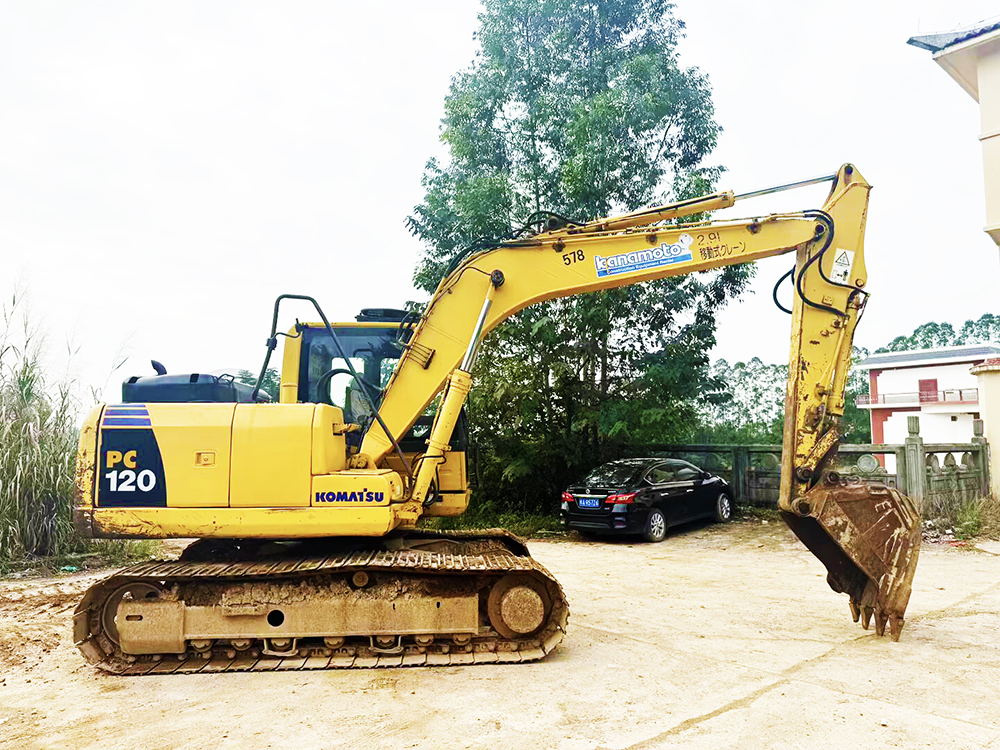

Komatsu PC120 Used Excavator For Sale

📧 Leave us a message

---

Original Factory Parameters Of The Used Digger Komatsu PC120:

Machine operating weight (kg): 11498.6
Boom length (mm): 4600
Stick length (mm): 2002
Country of origin: Japan
Tonnage (tons): 12
Manufacturer: Joint venture/Imported
Power source: Conventional power

Performance:

Slewing speed (rpm): 10.3
Travel speed (km/h): 5.5/3.0
Climbing ability (%): 35°
Ground pressure (kPa): 60
Bucket digging force (kN): 187/203
Hoist digging force (kN): 137/149
Maximum traction force (kN): 300

Power System:

Engine Model: Komatsu S4D105-5
Rated Power (kW/rpm): 67.1 kW
Displacement (L): 4.3 L
Hydraulic System: Main Pump Maximum Flow Rate (L/min): 323 L/min

Hydraulic System:

Travel hydraulic circuit (MPa) 34.3
Rotary hydraulic circuit (MPa) 26.2 Oil
capacity: Fuel tank (L) 520
ydraulic oil tank (L) 195
Hydraulic system (L) 360

Fuel Capacity:

Fuel tank (L) 230
Hydraulic oil tank (L) 145

Main dimensions:

Total transport length (mm): 7470
Total transport width (mm): 2430
Total transport height (mm): 2675
Cabin overall height (mm): 2675
Counterweight ground clearance (mm): 910
Track ground contact length (mm): 2570
Track shoe width (mm): 480
Total track width (mm): 2430
Track gauge (mm): 1950
Minimum ground clearance (mm): 400
Rear turning radius (mm): 2225

Operating range:

Maximum excavation radius at the stopping face (mm): 7540
Maximum excavation depth (mm): 5000
Maximum excavation height (mm): 7550
Maximum unloading height (mm): 5220
Maximum vertical excavation depth (mm): 4200
