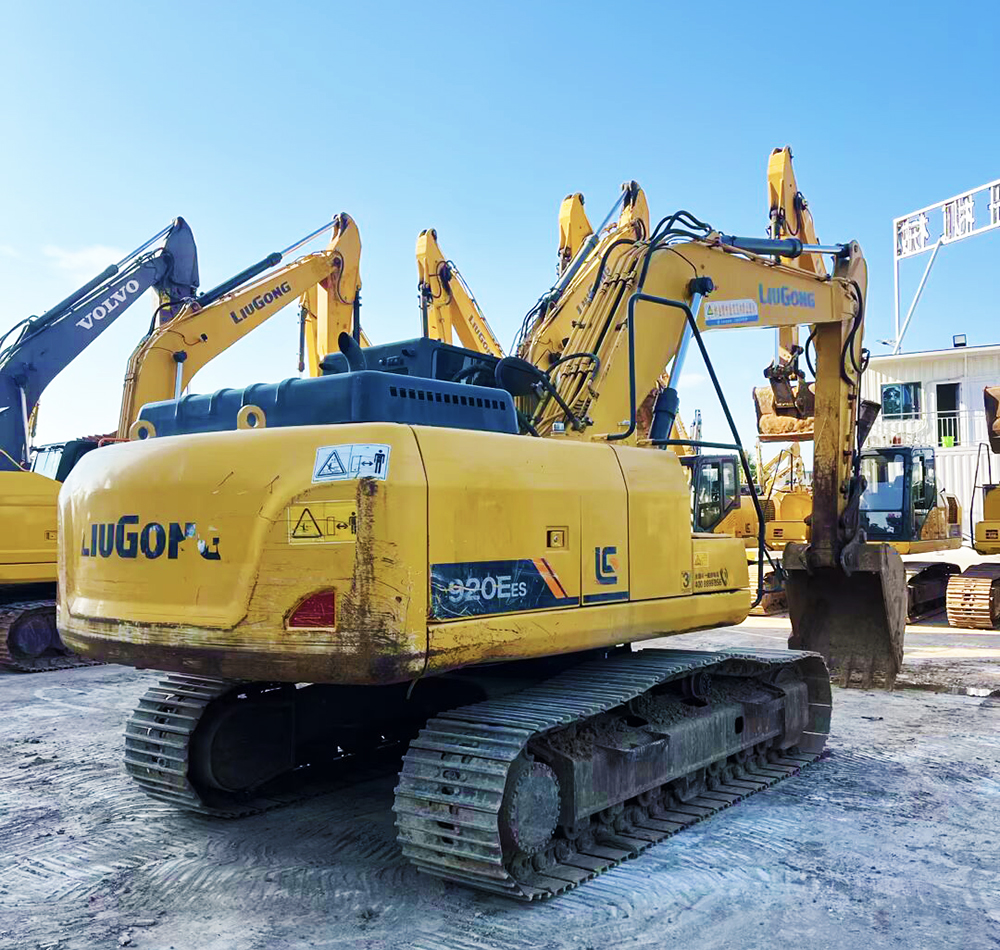

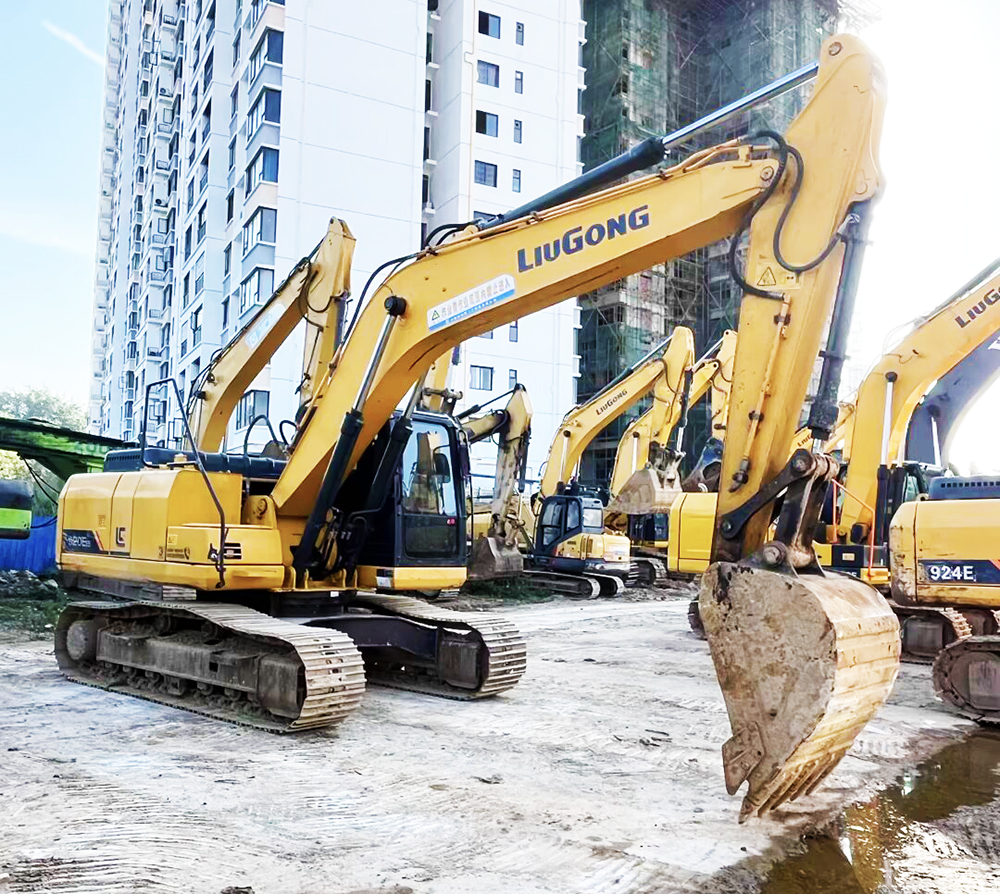

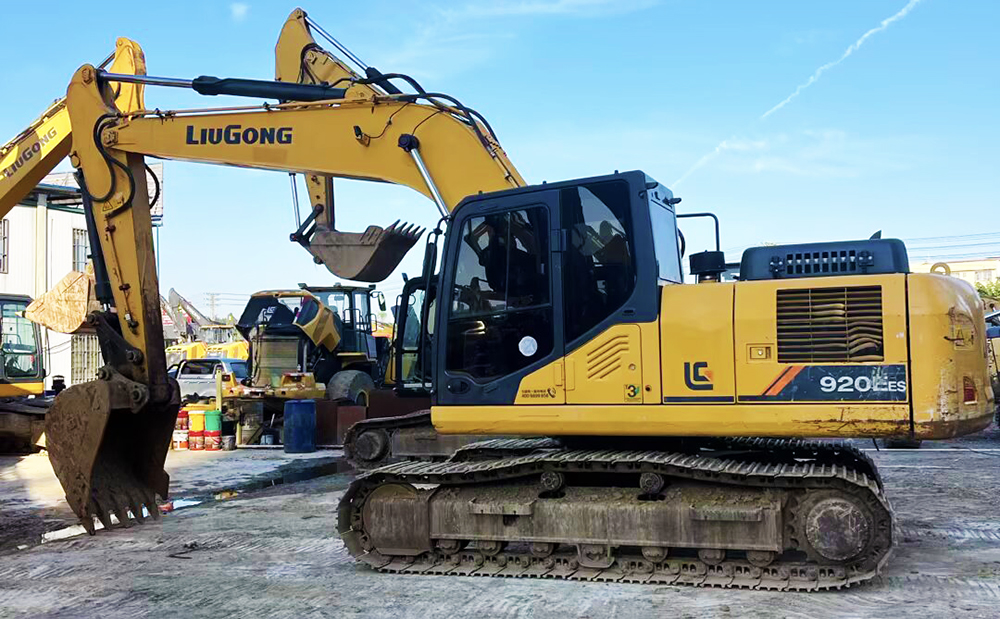

Digger Liugong 920E Used Excavator For Sale

📧 Leave us a message

---

Original Factory Parameters Of The Used Digger Liugong 920E:

Power: Conventional Power
Manufacturer: Domestic
Bucket: Backhoe
Tonnage (tons): 20
Operating Weight (kg): 21500
Bucket Capacity (m³): 0.9
Boom Length (mm): 5710
Stick Length (mm): 2915

Performance:

Slewing speed (rpm): 10.5
Travel speed (km/h): 5.3 / 3.0 (High / Low)
Climbing ability (%): 35°
Ground pressure (kPa): 44.2
Bug digging force (kN): 140 / 152.5
Hoist digging force (kN): 97 / 105
Maximum traction force (kN): 220

Power System:

Engine Model: Cummins QSB7
Rated Power (kw/rpm): 124/2050
aximum Torque (N.m): 658/1200
Displacement (L): 6.7
Number of Cylinders: 6 Bore × Stroke (mm): 107*124
Cooling Method: Water-cooled
Operating Mode: Turbocharged, Air-to-Air Intercooled, High-Pressure Common Rail, Electronic Direct Injection

Hydraulic System:

Working hydraulic circuit (MPa): 34.3
Travel hydraulic circuit (MPa): 34.3
Slewing hydraulic circuit (MPa): 25.5

Fuel System:

Fuel tank (L) 420
Hydraulic oil tank (L) 210
Hydraulic system (L) 330

Main dimensions:

Total transport length (mm): 9570
Total transport width (mm): 2800
Total transport height (mm): 3140
Track width (mm): 600
Track gauge (mm): 2200
Minimum ground clearance (mm): 440
Minimum turning radius of the front working device (mm): 3090

Operating range:

Maximum digging radius (mm): 9870
Maximum digging radius at the stopping face (mm): 9685
Maximum digging depth (mm): 6562
Maximum digging height (mm): 9945
Maximum unloading height (mm): 7170
Maximum vertical digging depth (mm): 5080
